OBD vs Bench vs Boot: Which ECU Read Method Should You Use?

“OBD or bench?” is one of the most common questions from technicians starting with tools like KESS3, K-TAG, Autotuner or Flex. The answer depends on the ECU, the processor inside it and what you need from the read. This guide compares OBD, bench, boot and BDM/JTAG reading in practical terms, explains why a full backup matters, and lists the fault codes that usually appear when a read or write goes wrong.

Calibration read versus full read

An ECU stores its program and calibration in flash memory, and adaptations, coding, VIN and immobiliser information in EEPROM or an emulated EEPROM area. Some methods only reach the calibration area, which is enough to modify maps and limiters. A full read copies the entire flash and, where possible, the EEPROM too. A full read is the better backup, because it can restore the ECU completely if a write fails or the unit has to be returned to original.

Comparing the methods

OBD reading

The tool plugs into the diagnostic socket and uses the ECU’s own programming services over CAN or K-line. Nothing is removed or opened, which makes it the quickest option in the workshop. The limits: the protocol must be supported by the tool, newer ECUs may be locked against OBD access, and on some units only part of the memory can be read.

Bench reading

The ECU is removed and powered on the table through its connector, using a dedicated cable or harness. Communication still runs through the ECU software, but bench access often reaches more areas, including EEPROM. It is the fallback when OBD is not available. Getting the pinout right is essential.

Boot reading

The housing is opened and the processor is put into its bootstrap mode through test points on the board. This gives full low-level access to read and write all memory, and it is a common way to recover a unit that stopped communicating. It needs care with probes or soldering and protection against static discharge.

BDM and JTAG

These debug interfaces connect directly to the processor through board pads. They are used for specific processor families, are slower and demand precise work, and are generally reserved for cases where nothing else works.

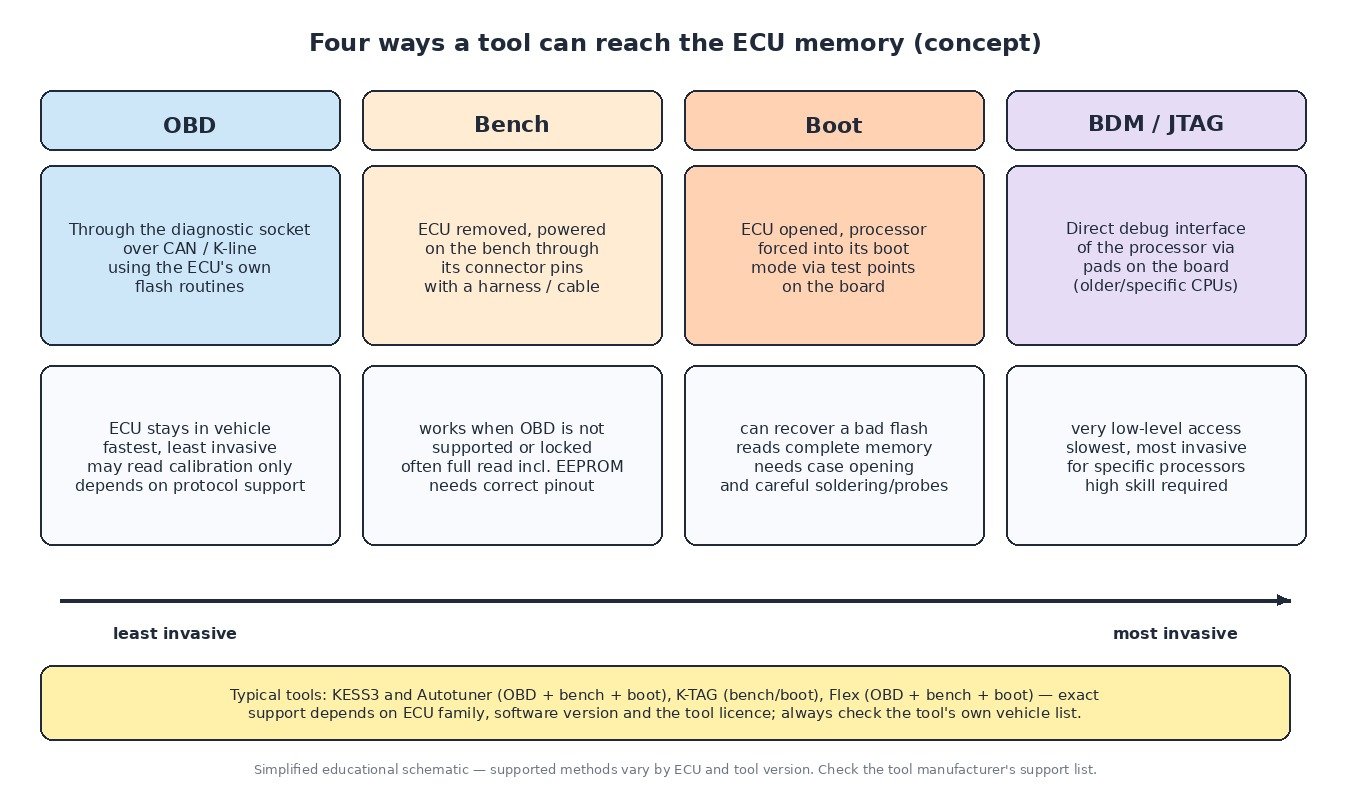

Diagram comparing four ECU reading methods: OBD through the diagnostic socket, bench through the ECU connector, boot mode via board test points, and BDM/JTAG debug access
Four ECU reading methods: OBD, bench, boot, BDM/JTAG (simplified educational diagram, original illustration)

Where the tools fit

Alientech’s KESS3 covers OBD, bench and boot in one interface, while K-TAG is the established bench and boot tool. Autotuner and Magicmotorsport Flex also cover OBD, bench and boot. Support for each ECU family depends on the software version and licence, so always check the manufacturer’s list before connecting. WinOLS is an editor for working on the file after reading, not a reading tool.

Six rules for a safe session

  1. Confirm the ECU hardware and software numbers before choosing a method.
  2. Use a stabilised power supply; low voltage is a leading cause of failed writes.
  3. Save every available memory area straight away.
  4. Verify the read and store two copies.
  5. Make sure checksums are corrected before writing a modified file.
  6. Never interrupt a write; afterwards, clear codes and test while logging.
Six-step safe ECU read and write workflow: identify ECU, stabilised power supply, full read, verify, checksum correction, uninterrupted write
Safe ECU read and write workflow (simplified educational diagram, original illustration)

Differences by vehicle type

Cars offer OBD access on many ECUs, though protected newer units often need bench or boot. Trucks and buses use 24 V systems and heavy-duty diagnostic networks, so cable and protocol selection matter. Tractors and agricultural machinery mix connector types and ECU suppliers, with bench reads common. Motorbikes and ATVs frequently need bench or boot because of small ECUs and varied diagnostic plugs.

Chart of typical ECU reading methods for passenger cars, trucks and buses, tractors and agricultural machines, and motorbikes
Reading methods across vehicle types (simplified educational diagram, original illustration)

Related fault codes (DTCs)

These generic OBD-II codes (SAE J2012) are the ones most often seen around ECU reading, writing and power problems. Exact wording varies slightly between manufacturers.

CodeMeaningTypical causes
P0601Internal Control Module Memory Check Sum ErrorModified file written without a correct checksum, corrupted flash after an interrupted write, internal ECU fault
P0602Control Module Programming ErrorIncomplete or failed programming session, wrong software for the hardware, ECU not fully coded
P0603Internal Control Module Keep Alive Memory (KAM) ErrorBattery disconnected or very low, poor ECU supply or ground, internal fault
P0604Internal Control Module Random Access Memory (RAM) ErrorInternal ECU fault, supply voltage disturbance
P0605Internal Control Module Read Only Memory (ROM) ErrorCorrupted or incorrect flash content, failed write, internal fault
P0606Control Module ProcessorInternal processor or monitoring fault, sometimes triggered by supply problems or water damage
P062FInternal Control Module EEPROM ErrorCorrupted EEPROM data, wrong EEPROM written back, internal fault
P0630VIN Not Programmed or Incompatible – ECM/PCMReplacement or cloned ECU without the correct VIN, incomplete coding after programming
P0513Invalid SK Key (immobiliser)Immobiliser data mismatch after an ECU swap or EEPROM change, unmatched key
P0560System VoltageWeak battery, charging system fault, poor connections
P0562System Voltage LowBattery discharged during long reads or writes, charger not connected, alternator fault
P0563System Voltage HighOver-voltage from a faulty charger or regulator, incorrect power supply setting
U0001High Speed CAN Communication BusWiring or termination fault, a module pulling the bus down, connector damage
U0100Lost Communication With ECM/PCM “A”ECU not powered or not booting, CAN wiring fault, ECU left in a failed programming state
U0101Lost Communication With TCMGearbox control unit offline, wiring, or TCU not responding after a flash

Before you send a file

Include the original, unmodified read, the tool and method used, and the ECU hardware and software numbers. That information lets the calibrator match the software exactly and correct checksums for a clean write-back.
