Bench pinout guide
Volkswagen Golf 1.9 TDI PD
Key points: EDC16U1 pinout
- Treat this EDC16U1 pinout page as a signal map (12 V, GND, CAN or K-line, boot) — not a guessed pin number.
- Copy the connector view from your tool for this exact hardware; mirrored photos brick healthy units.
- Original dumps for restore live on ecuflashfiles.com; Stage 1 belongs on ecufilemarket.com.

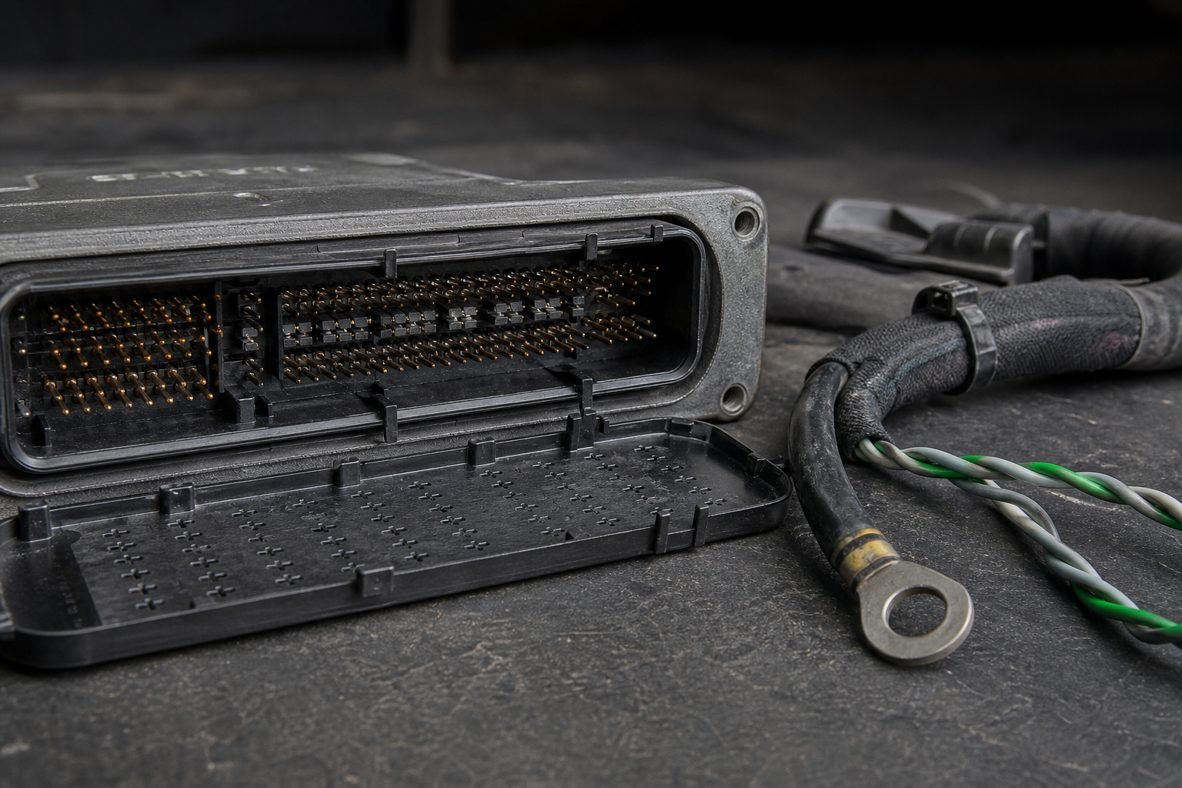

This is a functional pinout for the EDC16U1 (Bosch diesel ECU — EDC16U1 (MPC)), used on VW / Audi / Škoda / SEAT 1.9 and 2.0 TDI PD. It lists the signals you must resolve on the housing and on the PCB. Exact cavity numbers are not republished here — they live in the licensed tool diagram for this hardware, because connector views (cable vs pin) reverse.
Pinouts and protocols vary by hardware revision. Always open the official diagram inside your tool for this exact Bosch / Continental / Delphi / Denso number before you apply power. A wrong connector orientation or a guessed boot pin is a common way to kill a healthy ECU.
Why pin numbers are not copied from a random photo
Alientech, Autotuner, Flex, PCMFlash and CMD each draw the connector from a defined side (cable view vs pin view). A forum image without that label is how K-line and CAN-H get swapped. Use this page to know which signals exist; use the tool to see which cavity they sit in.
EDC16U1 signal map
| Signal | What it does |
|---|---|
| Battery +12V | Stabilised PSU, typically 13.5–14.2 V, fused. Do not rely on a weak car battery. |
| Ground | Connect every ground the tool diagram shows. One missing GND is a classic no-comm. |
| Ignition / 15 | Only after the loom is complete. Switching IGN early with floating CAN is how ECUs brick. |
| K-line | Single-wire ISO 9141 / KWP. Confirm which pin is K on this housing — it moves between variants. |
| BOOT / BDM / GPT | Recovery only. The pad or pin is unique to the PCB. Copy it from the tool, never from a forum photo of a different hardware. |
EDC16 may use K-line or CAN depending on the car. Many VAG PD units still talk K-line on the bench; common-rail CP units are more often CAN.
Power supply
- 13.5–14.2 V regulated, not a charger in ‘repair’ mode
- Thick grounds to the housing and to the pin the tool marks as GND
- Current limit high enough for the first handshake (several amps on Tricore / MDG1)
- No ignition until CAN/K-line and grounds are on
Boot and BDM on the board
If OBD and the vehicle connector both fail, EDC16U1 recovery is a boot or BDM job. The tool shows a photograph of this PCB with the boot resistor, pad or pin. Do not transfer a boot wire from an older sibling family — EDC16 boot is not EDC17 boot, and MED17.5 is not MG1.
Boot-capable tools recorded for this family: Alientech K-TAG, Autotuner, Magic Motorsport Flex and CMD Flash.
Loom checklist before you press Read
- Connector fully seated; no bent pins
- Orientation matches the tool drawing (clip position)
- Every marked GND connected
- CAN pair not swapped / K-line on the correct cavity
- Boot wire attached only if the protocol requires it
After a successful read
Save the dump with SW and HW in the filename. If you need a public original of the same software number, check ecuflashfiles.com. Do not flash a file from a different EDC16U1 hardware even when the engine code matches.
Original dumps sold on ecuflashfiles.com are for restore, comparison and workshop use. Stage 1 and delete work belongs on ecufilemarket.com. In some regions DPF off, EGR off, OPF / GPF off, SCR / AdBlue and even Stage 1 may be used only on off-road and competition cars. Confirm the law where the vehicle is registered.
FAQ: EDC16U1 pinout
Can I wire a EDC16U1 bench loom from a forum photo?
No. Connector views are often mirrored. Use the EDC16U1 pinout diagram inside your licensed tool for this hardware number.
Which pins does a EDC16U1 need on the bench?
Stable +12 V, every ground the tool shows, ignition after the loom is complete, then CAN-H/CAN-L or K-line, and boot only for recovery.
Where do I get a matching original if the read fails?
Search ecuflashfiles.com by the software number on the label. Do not flash a ‘similar engine’ file.
